TU/P – GUIDEWAYS PORTAL GRINDING MACHINES

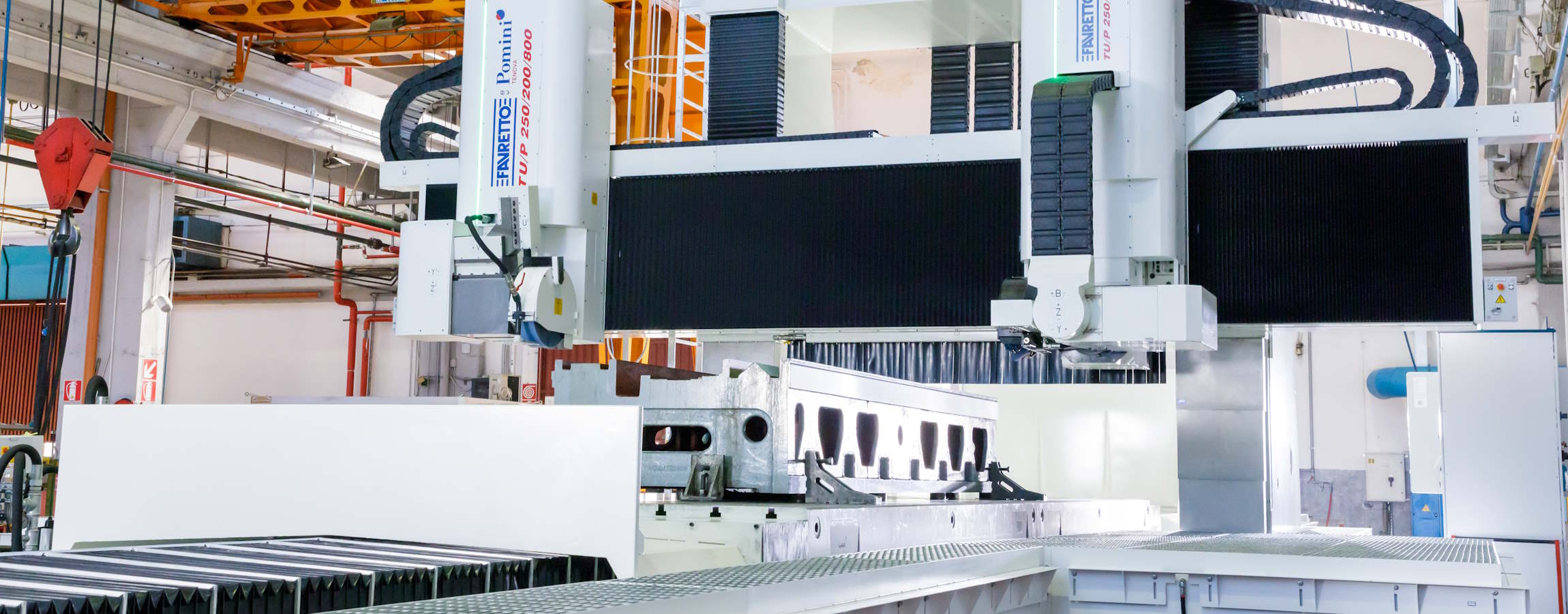

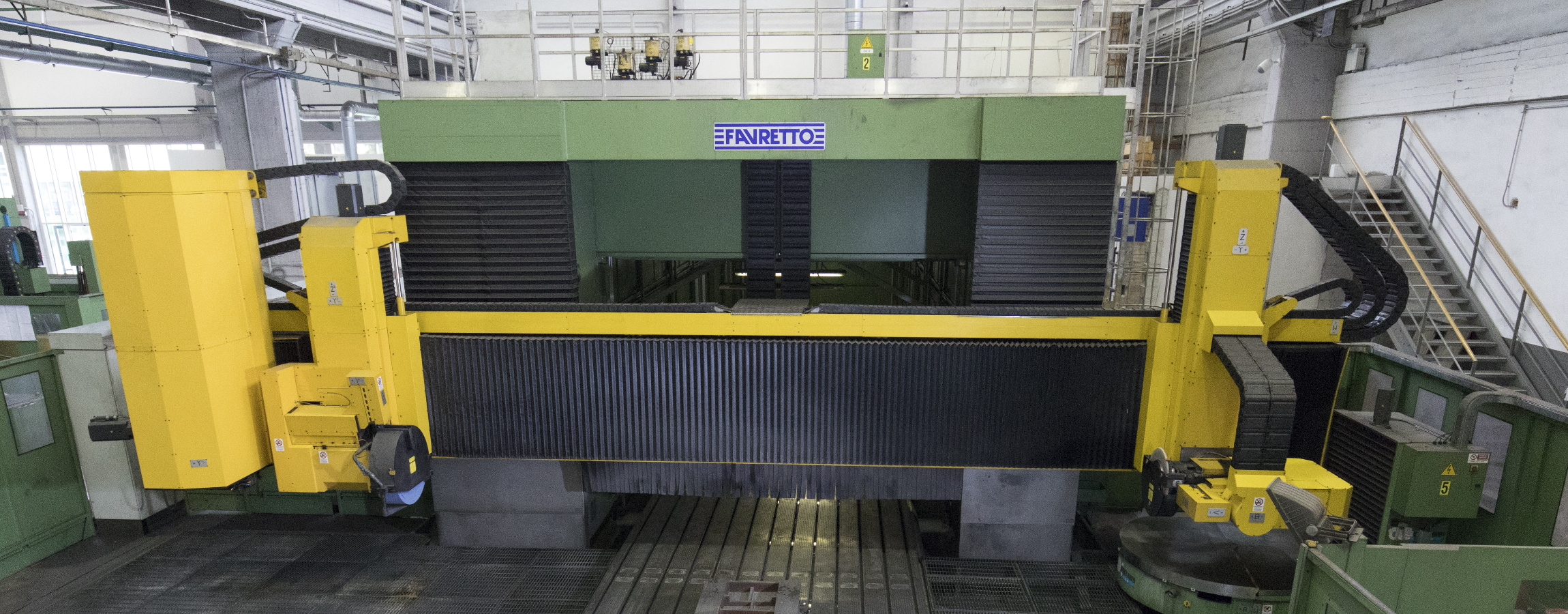

The largest FAVRETTO TU/P Guideways Grinding Machine is in production in TENOVA Workshop in Castellanza and it is used for precision grinding and finishing of our large machine tools. The very long tradition and expertise developed by our company in supplying large Grinding Machines with micrometric accuracy, is applied also on the new TU/P FAVRETTO by POMINI movable crossrail Portal Grinding Machines.

TU/P Series TU/P Series TU/P Series TU/P Series
❮
❯

TU/P 200-150 Series

  • Max grinding Length: 4000 ÷ 10000 mm
  • Max grinding Width: 2000 mm
  • Max grinding Height: 1500 mm
  • Universal Head Spindle Power: 38 kW
  • Universal Head Spindle Grinding Wheel size: 610 x 304,8 x 100 mm
  • Tangential Head Spindle Power : 50÷80 kW
  • Tangential Head Spindle Grinding Wheel size: 610 x 304,8 x 100 mm

TU/P 250-200 Series

  • Max grinding Length: 4000 ÷ 16000 mm
  • Max grinding Width: 2500 mm
  • Max grinding Height: 2000 mm
  • Universal Head Spindle Power: 38 kW
  • Universal Head Spindle Grinding Wheel size: 610 x 304,8 x 100 mm
  • Tangential Head Spindle Power : 50÷80 kW
  • Tangential Head Spindle Grinding Wheel size: 610 x 304,8 x 100 mm

TU/P 300-200 Series

  • Max grinding Length: 4000 ÷ 16000 mm
  • Max grinding Width: 3000 mm
  • Max grinding Height: 2000 mm
  • Universal Head Spindle Power: 38 kW
  • Universal Head Spindle Grinding Wheel size: 610 x 304,8 x 100 mm
  • Tangential Head Spindle Power : 50÷80 kW
  • Tangential Head Spindle Grinding Wheel size: 750 x 304,8 x 200 mm

TU/P 300-250 Series

  • Max grinding Length: 4000 ÷ 16000 mm
  • Max grinding Width: 3000 mm
  • Max grinding Height: 2500 mm
  • Universal Head Spindle Power: 38 kW
  • Universal Head Spindle Grinding Wheel size: 610 x 304,8 x 100 mm
  • Tangential Head Spindle Power : 50÷80 kW
  • Tangential Head Spindle Grinding Wheel size: 750 x 304,8 x 200 mm
