GGD - LINEAR MOTION GUIDES GRINDING MACHINES

LINEAR MOTION GUIDES GRINDING MACHINES LINEAR MOTION GUIDES GRINDING MACHINES LINEAR MOTION GUIDES GRINDING MACHINES
❮
❯

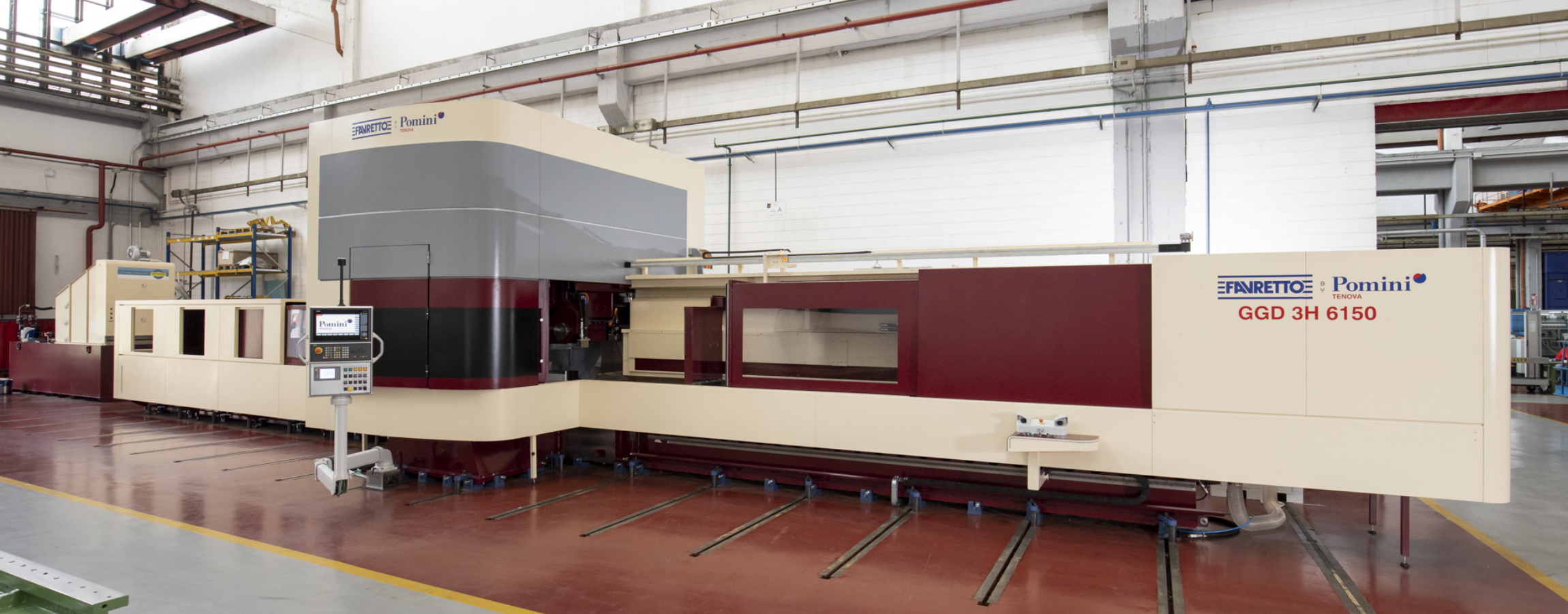

GGD 6200 Series

  • 13 CNC Axes
  • 5 CNC Spindles
  • Grinding length: 6150 mm
  • Min.-max. guideway width: 15 ÷ 100 mm
  • Min.-max. guideway height: 15 ÷ 100 mm
  • Table working surface: 6500 x 500 mm
  • Horizontal wheel size: 508 x 203.2 x 100 mm
  • Vertical wheel size: 610 x 304.8 x 120 mm
  • 1 A.C. spindle motor - 4 poles for horizontal wheel head (S1 - 100%): 29.3 kW
  • 2 A.C. spindle motors - 4 poles for vertical wheel head (S1- 100%): 38 kW

GGD 4200 Series

  • 13 CNC Axes
  • 5 CNC Spindles
  • Grinding length: 4150 mm
  • Min.-max. guideway width: 15 ÷ 100 mm
  • Min.-max. guideway height: 15 ÷ 100 mm
  • Table working surface: 4500 x 500 mm
  • Horizontal wheel size: 508 x 203.2 x 100 mm
  • Vertical wheel size: 610 x 304.8 x 120 mm
  • 1 A.C. spindle motor - 4 poles for horizontal wheel head (S1 - 100%): 29.3 kW
  • 2 A.C. spindle motors - 4 poles for vertical wheel head (S1- 100%): 38 kW
