TRD AND TR-CN – ROTARY TABLE GRINDING MACHINES

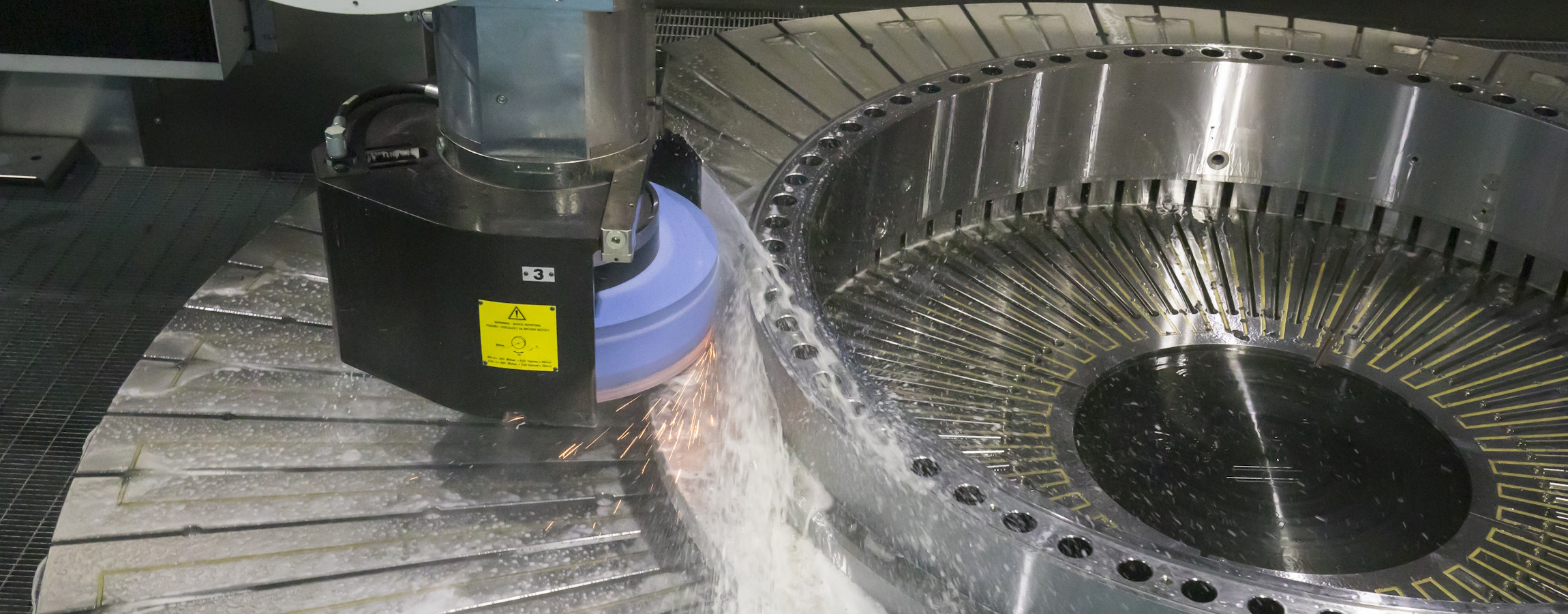

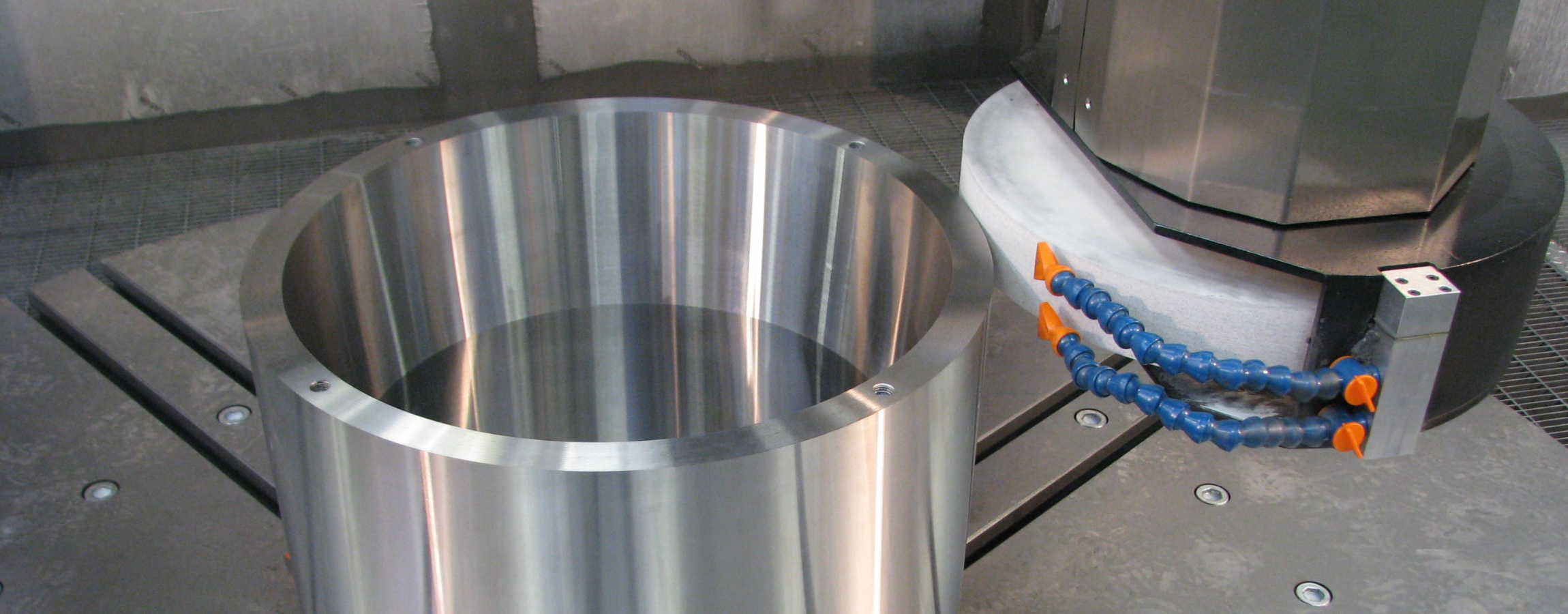

The FAVRETTO by POMINI hydrostatic technology applied to the rotary table allow to grind heavy workpieces up to a diameter of 6000 mm, or more if requested by the application. Furthermore the productivity of TRD and TR-CN machines can be considerably increased integrating in the same machine also a turning and milling head with automatic tool change devices, customized for any specific project.

TRD AND TR-CN – ROTARY TABLE GRINDING MACHINES TRD AND TR-CN – ROTARY TABLE GRINDING MACHINES TRD AND TR-CN – ROTARY TABLE GRINDING MACHINES TRD AND TR-CN – ROTARY TABLE GRINDING MACHINES
❮
❯

TR-CN Series

  • Max grinding diameter: 1600 ÷ 6100 mm
  • Min. Grinding diameter internal (STD wheel) : 400 mm
  • Max grinding Height (STD wheel) : 1550 mm
  • Vertical Head for internal Power: 15 kW
  • STD wheel dimension Min-Max diameter: 350 ÷ 508 mm
  • Vertical Head for external Power: 30 kW
  • Wheel dimension: 610 x 304.8 x 150 mm
  • Rotary table Diameter: 1500 – 2000 – 2500 – 3000 -4300 - 6000 mm

TRD Series

  • Max grinding external diameter x height: 1600 x 800 ÷ 6100 x 800 mm
  • Vertical Head Spindle Power: 10 ÷ 15 kW
  • STD wheel dimension Min-Max diameter: 400 ÷ 508 mm
  • Rotary table Diameter: 1500 – 2000 – 2500 – 3000 - 4300 - 6000 mm

TRD-2H Series

  • Max grinding diameter: 1600 ÷ 6100 mm
  • Min. Grinding diameter internal (STD wheel) : 300 ÷ 400 mm
  • Max grinding Height (STD wheel) : 1200 mm
  • Spindle Head for internal Power: 15 kW
  • STD wheel dimension Min-Max diameter: 350 ÷ 508 mm
  • Spindle Head for external Power: 30 kW
  • Wheel dimension: 610 x 304.8 x 150 mm
  • Rotary table Diameter: 1500 – 2000 – 2500 – 3000 - 4300 - 6000 mm

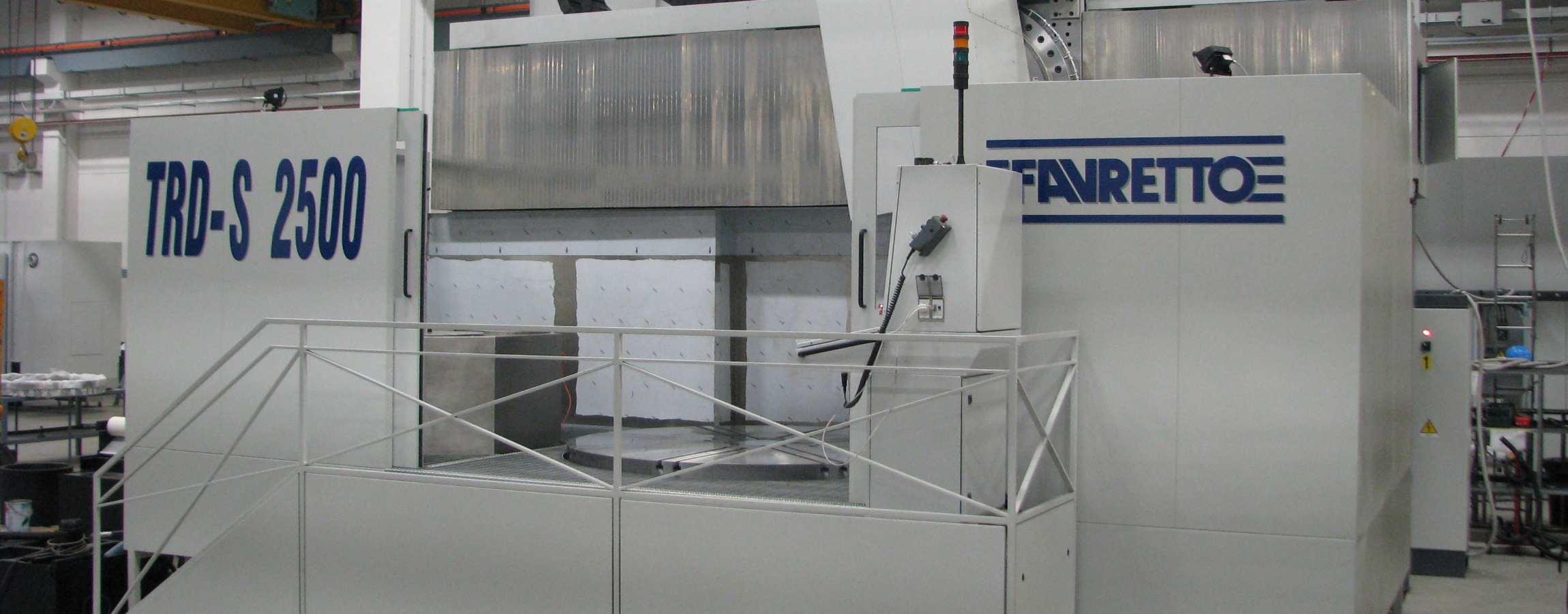

TRD-S Series

  • Max grinding external diameter x height: 1600 ÷ 6100 x 800 mm
  • Vertical Head Spindle Power: 15 kW
  • STD wheel dimension Min-Max diameter: 400 ÷ 508 mm
  • Rotary table Diameter: 1500 – 2000 – 2500 – 3000- - 4300 - 6000 mm

TRD/T Series

  • Max Diameter: 2100 ÷ 6100 mm
  • Horizontal Head Spindle Power: 22 kW
  • Wheel external diameter: 508 mm
  • Spindle Head for external-internal Diameters Power: 15 kW
  • Wheel external diameter: 508 mm
  • Spindle Head for internal Diameters Power: 10 kW
  • Wheel external diameter: 250 mm
  • Hydrostatic Rotary table Diameter: 2000 – 2500 – 2500 – 3000 - 4300 - 6000 mm

TRD-U Series

  • Max grinding external diameter x height (standard wheel): 1600 ÷ 6100 x 800 mm
  • Universal Head Spindle Power: 30 kW
  • STD wheel dimension: 610 x 304.8 x 100 mm
  • Rotary table Diameter: 1500 – 2000 – 2500 – 3000 - 4300 - 6000 mm

TRD/U-2H Series

  • Max grinding diameter: 1600 ÷ 6100 mm
  • Min. Grinding diameter internal (STD wheel) : 300 ÷ 400 mm
  • Max grinding Height (STD wheel) : 1200 mm
  • Vertical Head for internal Power: 15 kW
  • STD wheel dimension Min-Max diameter: 350 ÷ 508 mm
  • Universal Head Spindle Power: 30 kW
  • STD Wheel dimension: 610 x 304.8 x 100 mm
  • Rotary table Diameter: 1500 – 2000 – 2500 – 3000 - 4300 - 6000 mm

TRD-V Series

  • Max grinding diameter: 2100 ÷ 6100 mm
  • Head Spindle Power: 60 kW
  • Grinding wheel diameter: 600 mm
  • Rotary axis table: 2000 – 2500 – 3000 - 4300 - 6000 mm
